🚪 Door Lock Detector Project
Welcome to my IoT project!
This page presents a simple yet functional door lock status indicator based on ESP32.

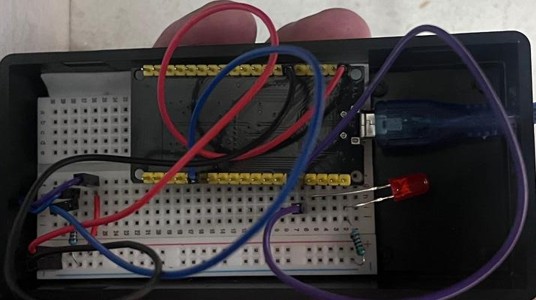

🔧 Hardware Setup
- Board: ESP32 DevKitC
- Sensor: Microswitch (connected to GPIO21 with INPUT_PULLUP)
- LED Indicator: GPIO2 (ON when locked)
- Debounce: 40 ms
- Serial Baud: 115200

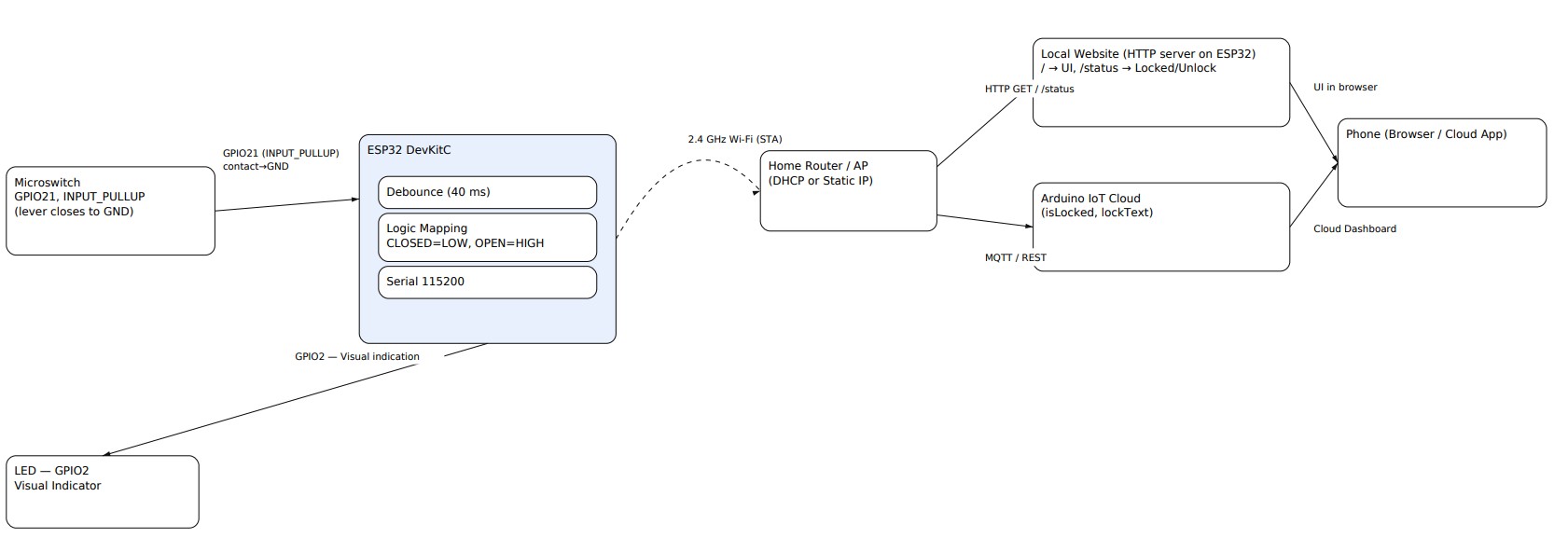

📊 System Diagram
📜 Features
- Local LED lock/unlock indicator
- Serial log for debugging (OPEN/CLOSED)
- Local Wi-Fi Web UI (HTTP, LAN)
- Arduino IoT Cloud integration for remote dashboard
🧪 Test Logs
- ✅ Boot with door closed → LED ON
- ✅ Toggle open/close → state detected correctly
- ✅ Idle stability after 60s → OK
- ✅ HTTP status endpoint → OK
- ✅ Arduino Cloud dashboard → OK

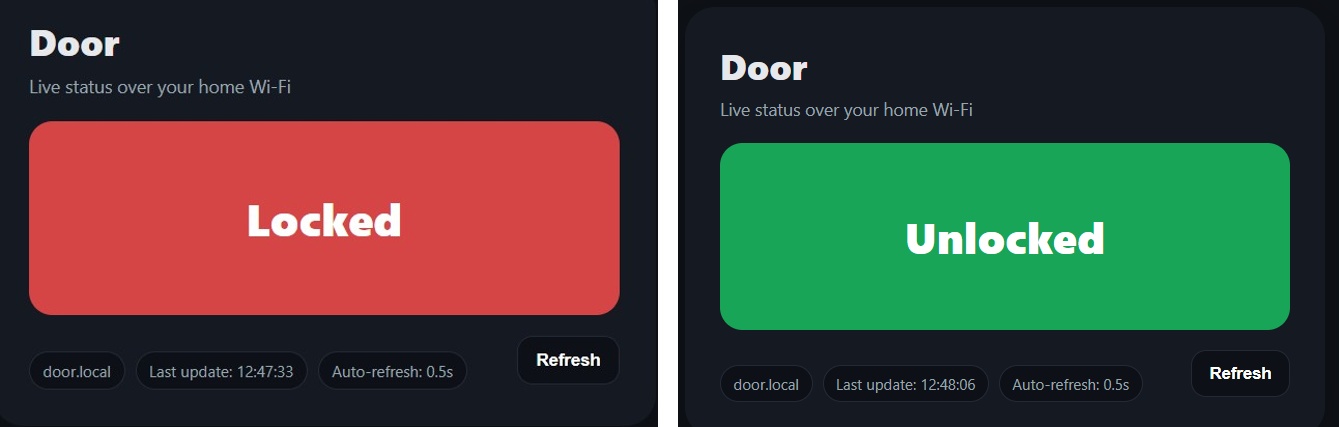

📸 Screenshots
